AWS Storage Gateway configuration.

The files from the NFS server have now been copied to the AWS S3 bucket defined in the DataSync task. However, the application still running in the On-Premises environment will need access to the S3 bucket to continue with operations. The File Gateway was already deployed by CloudFormation in the on-premises region. Next, you will connect your application to the S3 bucket and provide access to the objects through Storage Gateway NFS share.

You will mount the Storage Gateway share on the Application server to validate access to the files.

Diagram

1. Activate the Storage Gateway in the same AWS region where the stack named DataMigrationWorkshop-inCloudResources was deployed.

Although the agent instance was created in the DataMigrationWorkshop-onPremResources template, before it can be used it needs to be activated.

Follow the steps below to active the agent:

  • Go to the AWS Management console page navigate to AWS Storage Gateway.

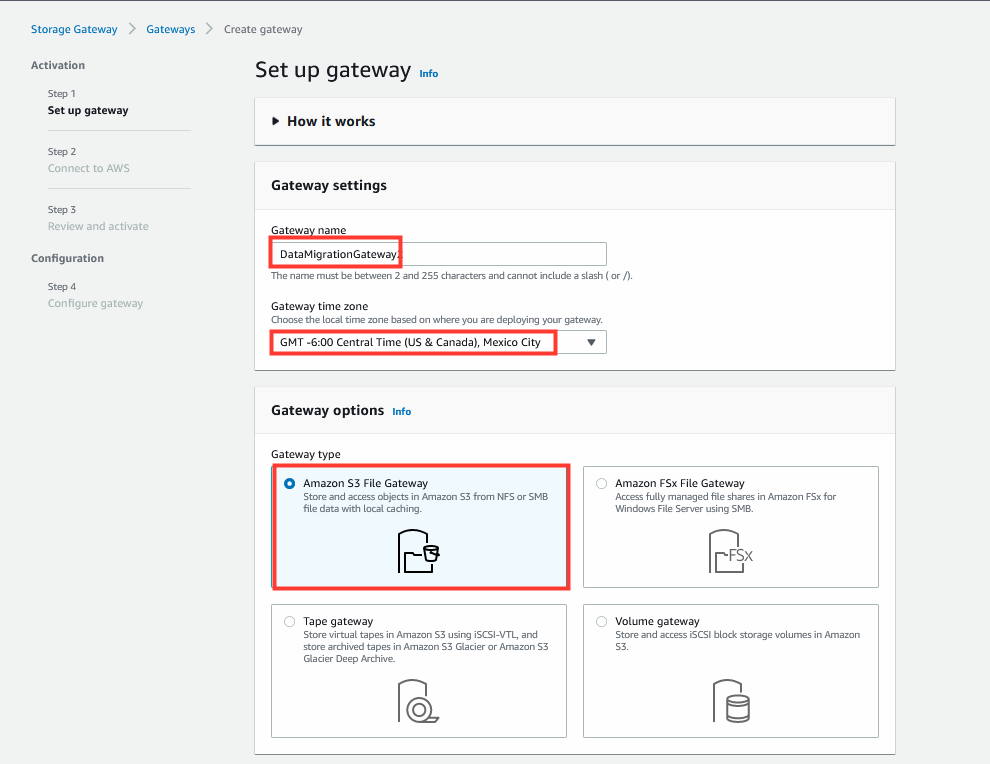

  • Click Create gateway.

  • Gateway Name: DataMigrationGateway

  • Gateway TimeZone: Select your timezone.

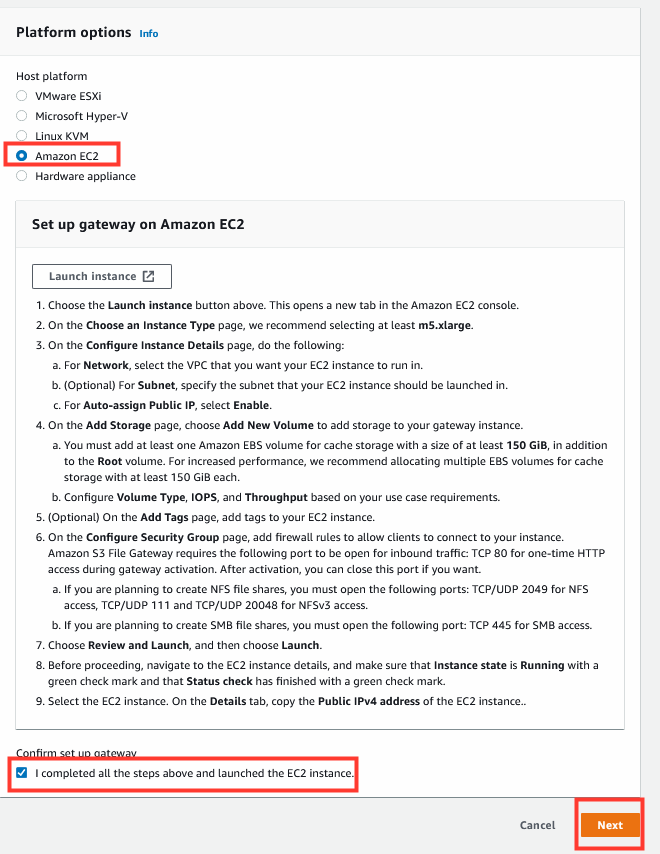

  • Gateway Option Type: Amazon S3 File Gateway.

  • Host Platform: Amazon EC2.

  • Launch EC2 Instance: Select Customize your settings.

  • Check Box to confirm gateway set up.

  • Click Next.

Diagram Diagram

2. Connect Gateway to AWS.

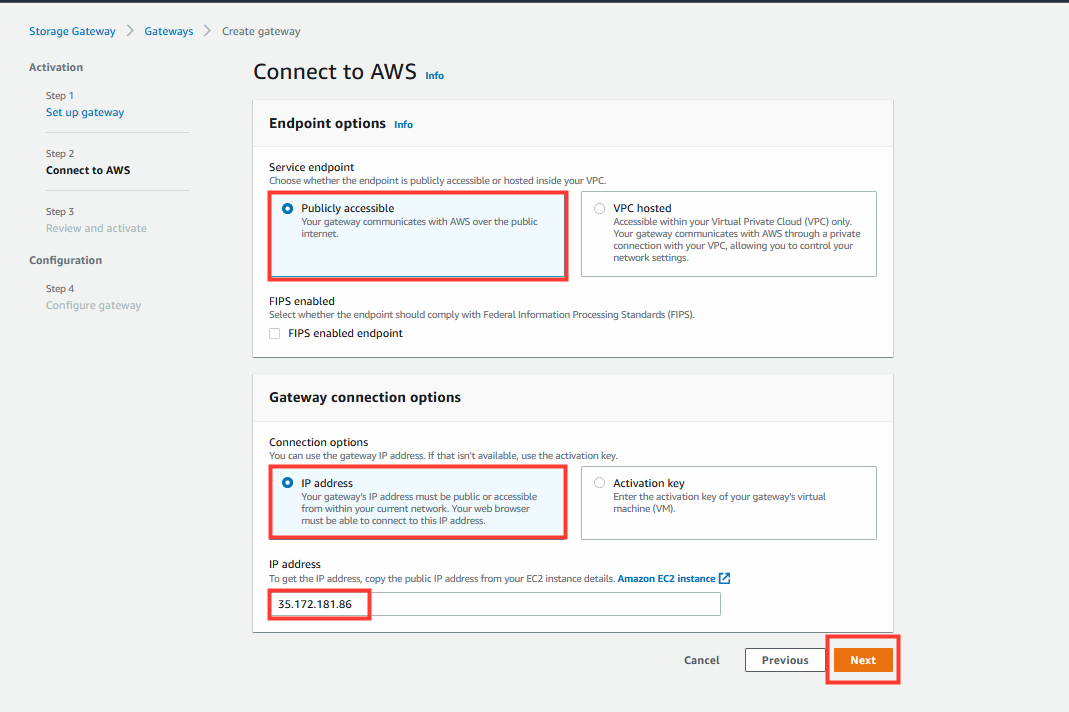

  • Service Endpoint: Publicly accessible.
  • Connection Option: IP Address.
  • Enter the fileGatewayPublicIP found in the outputs of the DataMigrationWorkshop-onPremResources template.
  • Click Next.
  • Review and click Next again.

Diagram

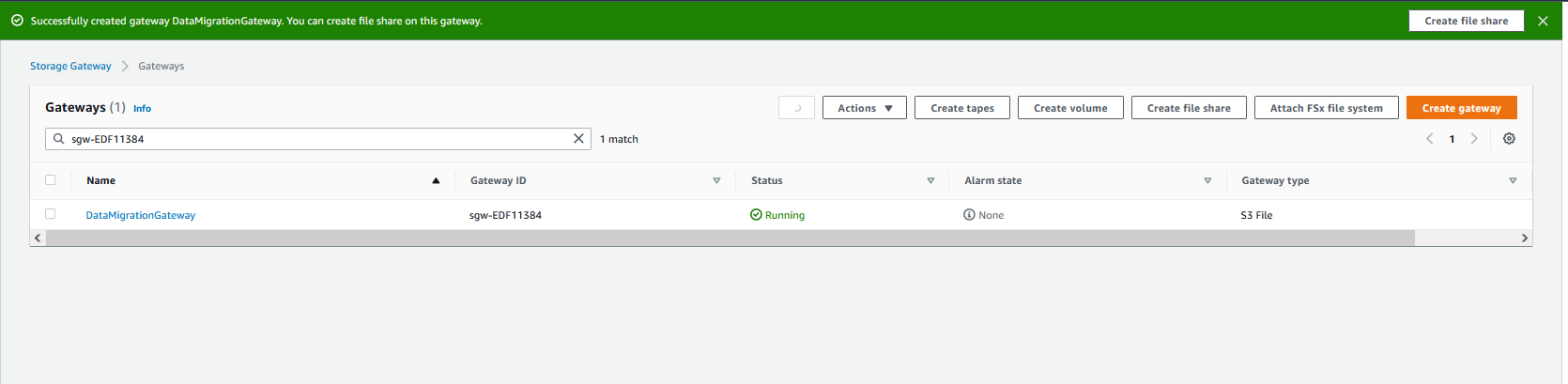

2.1 Configure Gateway.

  • Accept all the defaults
  • Click Configure.

Diagram Diagram

3. Create a Storage Gateway NFS share.

  • From the left-hand menu, select File Shares.

  • Click Create File share.

  • Select the Gateway just created.

  • Enter the S3 bucket’s name used for migration. Leave the S3 prefix name field blank.

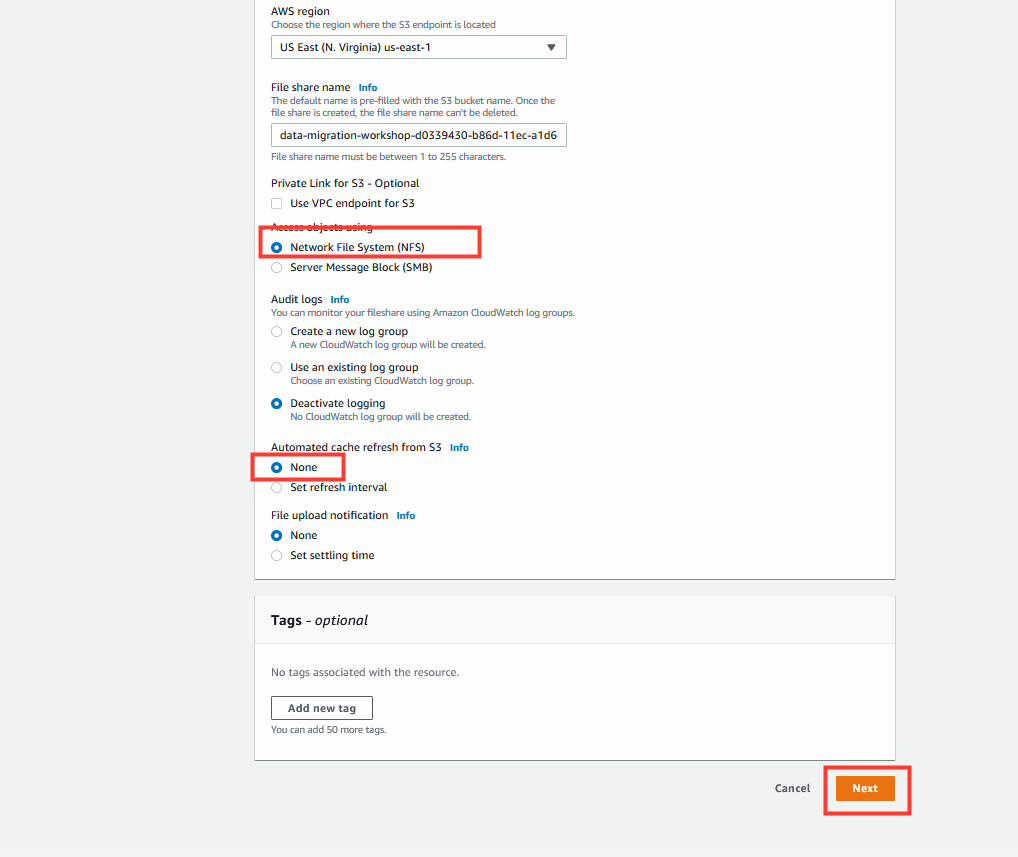

  • Ensure NFS is selected under the Access objects using setting.

  • Leave Automated cache refresh from S3 set to none.

  • Click Next.

Diagram Diagram

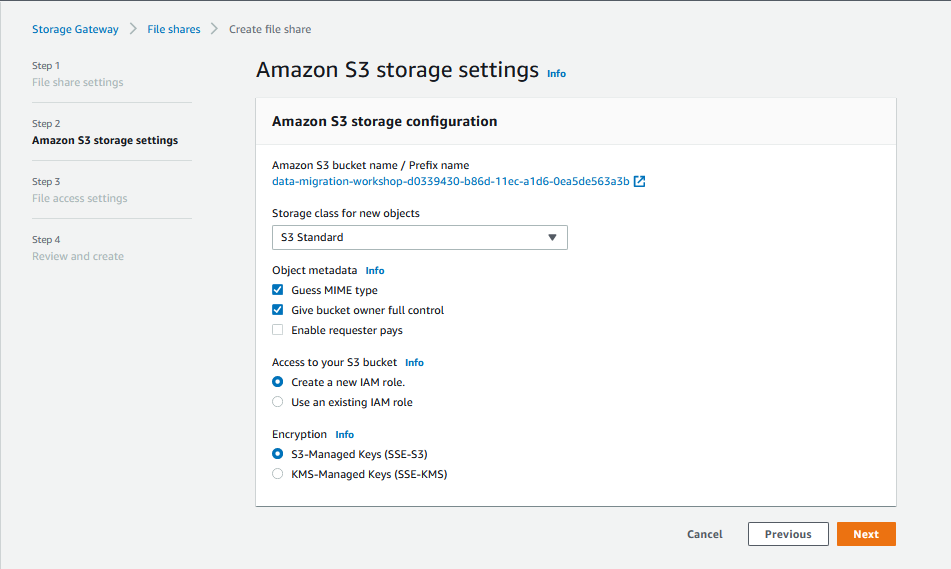

Keep the default S3 storage settings, then click Next.

Diagram

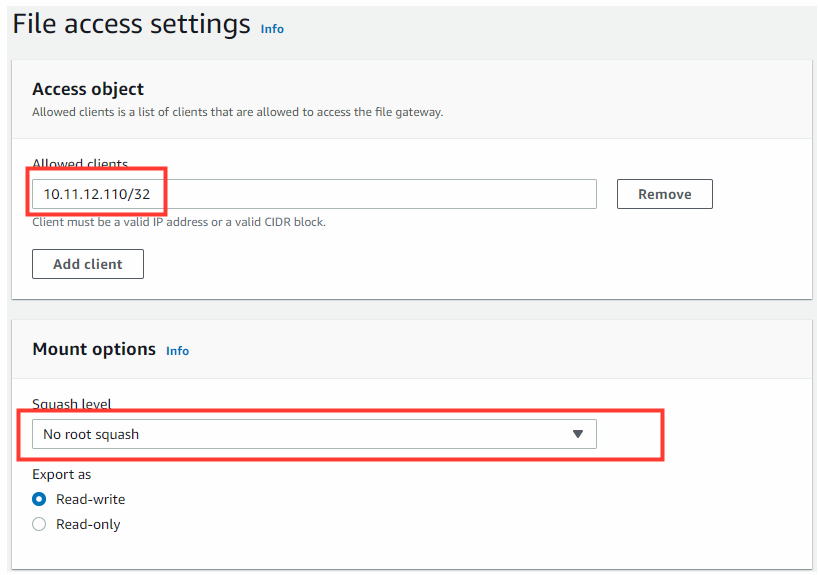

Under the Access object section, click Add client.

  • Add the appServerPrivateIP address, followed by “/32”. This will allow the Application server to access the NFS file share on the gateway.

  • Click Next.

Diagram

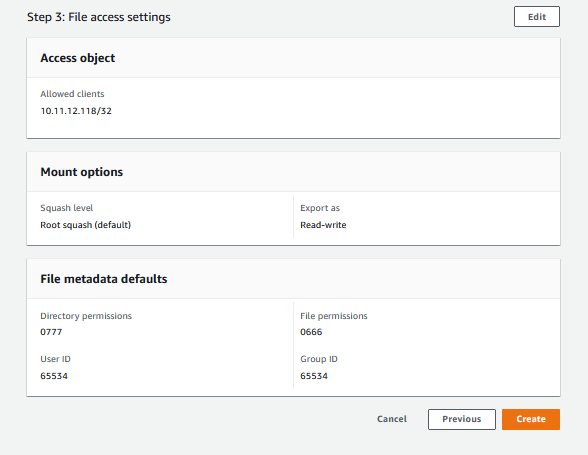

4. Review and Create.

  • Click Create.

Diagram

4.1 Example commands

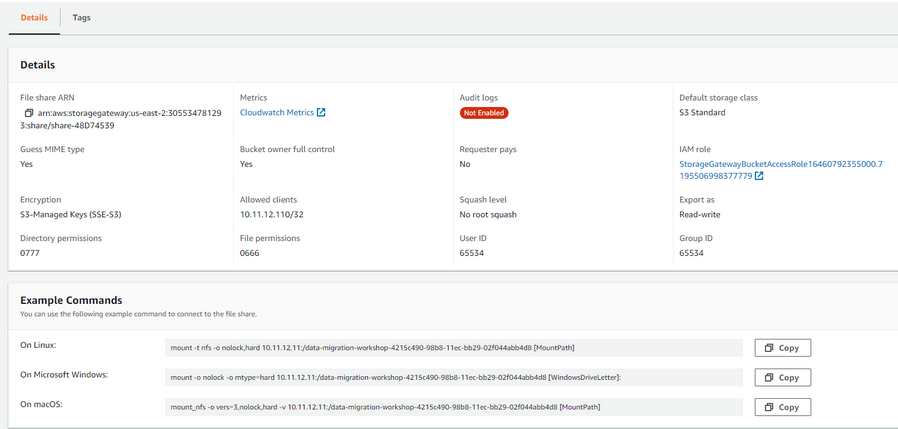

  • Copy down the AWS command on Linux.

Diagram

5. Mount the NFS Gateway share on the Application Server.

  • Return/Re-establish connection to the Application server and run the following command to create a new mount point for the Storage Gateway share:
sudo mkdir /mnt/fgw
  • Next, paste the Linux mount command copied from the Storage Gateway file page. Be sure to replace “[MountPath]” with /mnt/fgw. You must run the command as sudo.
[Example]
sudo mount -t nfs -o nolock,hard 1.1.1.1:/data-migration-workshop-12345678-2222-3333-4444-012345678910 /mnt/fgw
  • You should now have two NFS mount points on your Application server: one for the on-premises NFS server (mounted at /mnt/data) and one for the Storage Gateway (mounted at /mnt/fgw).

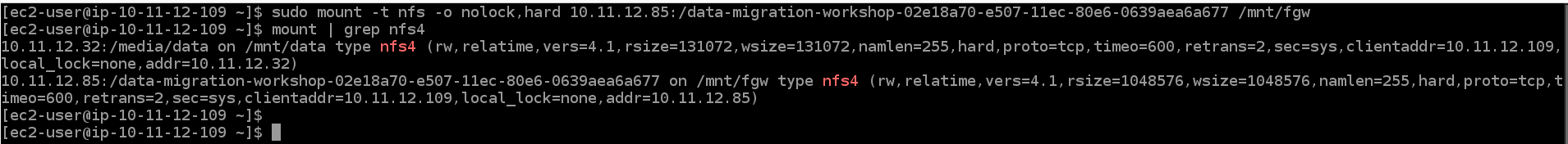

mount | grep nfs4

Diagram

Congratulations, you have successfully activated the Storage Gateway and created an NFS file share on the gateway. You then mounted the share on the Application server
